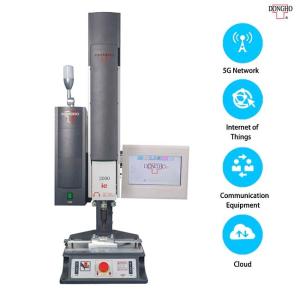

20kHz Ultrasonic Plastic Welding Machine Advanced And High
Precision Servo Welder
In general, we have two types of ultrasonic plastic welding
machines: Pneumatic ultrasonic plastic welding machine and servo
ultrasonic plastic welding machine. The new iSF series precision servo ultrasonic welding machine can
appreciate DONGHO's innovative capabilities, diversified expansion
of the iQS operating system, visual innovation to support the
vision system, data connection to support industry 4.0
applications, IDCS interconnection services to support remote
monitoring and collection. iSF series welding provides smart and
active solutions to improve welding accuracy, control, and
efficiency, ensure welding quality and improve the efficiency of
staff operation and product production.
Technical Parameters:
| Model | iSF S2025e |
| Frequency accuracy | 19.80KHz-20.20KHz |
| Power | 2500W |
| Triggering Method | Position/Pressure/Pressure drop |
| Welding Method | Weld time/relative position/absolute position/weld energy /peak power/Max.pressure/grounding detect |
| Effective stroke(mm) | ≤95mm |
| Max Welding Time | 5 S |
| Voltage(V) | AC220V±5% 50/60Hz |
| Amplitude control | Single-stage amplitude/stepping amplitude/distance amplitude |
| Piling function | Time /position/energy/pressure |
| Operation way | standard/multi-speed(9-speed) |
| Cooling system | Vortex cooler |
| Weld area | Not more than 150mm as per material, shape, etc. |
| Dimension(L*W*H)mm | 400*670*1610mm |
| Weight(kg) | 105KG |
Ultrasonic plastic welding frequency of this iSF Series:
20kHz,30kHz,35kHz,40kHz available
Ultrasonic Power:
800W,1200W,1500W,2500W,3000W,4000W available
Triggering Method:Position/Pressure/Pressure drop
Eight Unique Advantages:
1. 9-stage speed and pressure control for operation at super high speed, and intelligent drive system
makes this welder 6-Sigma repeatability, which contributes to the
stability, precision, and reliability of Dongho brand ultrasonic
welders;
2. The new type of weighing sensor can sense the force and data display, which enables better control
of the trigger force and welding force;
3. Superposition function: Four types of welding processes can meet the demand for some
special applications;
4. Advanced UTC multi-core control system has enhanced the performance greatly in several folds, in
conjunction with self-developed electromechanical adjustment-free
function for ultra-precision control, connecting MES, DPS systems
to PC has realized real-time data management;
5. CAN bus for field management to make the handling of high-speed
application procedures realizable;
6. The 6th generation iQS operating system with multi-level password protection;
7. Advanced 7 welding modes: Weld time, relative position, absolute position, weld energy, peak power, Max. pressure, grounding detect;
8. Intelligent functions and technologies(precise positioning,
distance, and stacking functions).
Quality Control:
1. After the customer confirms the demand, we will strictly control
each link of the product production;
2. At the same time, as the company sales team will follow up every
link of the order for our customers;
3. We have a QC team, All of our products will have 100% QC
inspection before delivery.
4. “Sustainable and permanent operation" is our vision and goal,
and we will provide continuous services for new and old customers
for the long run.
Our Services:
1. Response within 24 hours! All the contacts and emails will be
nicely responded within 30 minutes;
2. From the perspective of customers to help customers analyze and
choose suitable products for customers;
3. All after-sales service information will get feedback within 24
hours;
4. On-line technical training and on-line service are available;
